N° d'article : 53217

Caméra Alta F16M grade S

15.800,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à long terme
Cet article n'est plus disponible + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

The Apogee Alta family has been a mainstream of high end imaging for many years, offering a wide range of full frame and interline CCDs. Cooling performance down to 45° C below ambient ensures optimal signal to noise for long exposure applications. A USB 2.0 interface offers the convenience of simple, robust connection to PC.

Apogee Alta cameras are available with a wide variety of sensors, including: Back-illuminated sensors with very high quantum efficiency, some with sensitivity in the deep UV; Interline transfer sensors with fast electronic shuttering and inherent anti-blooming; front-illuminated CCDs with high sensitivity in the near-IR without etaloning and a range of resolution options up to 16.8 Megapixel.

Features and Benefits:

  • High resolution sensors: Sensors up to 16.8 Megapixel, offering large field of view at high resolution
  • Programmable TE cooling to 50 °C below ambient: Ideal for astronomy images, enabling long exposure acquisitions with optimized signal to noise ratio
  • High Dynamic Range: Large pixel sensor variants offer extended intrascene quantification of weak and bright objects
  • 16-bit digitization: High photometric accuracy
  • In built shutter: Shutter during readout and take dark reference frames - 25mm, 43mm or 63mm.
  • USB 2.0: Direct ‘Plug and Play’ connectivity
  • Programmable I/O port: Synchronization with intricate experimental set-ups
  • Remote triggering: LVTTL input allows exposure to start within 25 microseconds of rising edge of trigger
  • Focusing mode: Faster readout option, ideal for focus optimization
  • Precision locking filter wheels (optional): Choose from a range of Apogee family filter wheels, up to 10 position
  • Andor OEM optimization: Compact and robust, Andor integration support, Andor quality enhancement, Andor post-sale support. Now also supported by 'Andor SDK3'

The Alta F16M features the largest sensor in the Alta range - a very large format 16.8 megapixel full frame sensor with microlenses and transparent gate electrodes to maximize sensitivity, as well as anti-blooming structure. Cooling down to 45° Celsius below ambient results in a low darkcurrent contribution.
These features make the Alta F16M an ideal solution for applications requiring both a large field of view and optimal signal to noise ratio, such as DeepSky-astrophotography, sky surveys and radiology.

Special features:

  • Temperatur stability: +/- 0.1°C
  • Maximum Dynamic Range: 72.6 dB (4299:1)
  • Linearity: >99%
  • Camera Window: UV-grade fused silica
  • Image Sequencing: 1 to 65535 image sequences under software control
  • Shutter: 63mm
  • Blemish Specification: Grade S as per sensor manufacturer definition

Spécifications

Capacité


Anti-blooming
oui
Refroidissement
oui
caméra couleur
non
Interface
USB 2.0
Type de capteur
Puce CCD (Kodak KAF-16803)
Taille de puce (mm)
36,8 x 36,8
Taille des pixels
9
Résolution photo (Pixels)
4096 x 4096
Full Well Capacity
95.000
Profondeur de bit (Bit)
16
Différence maximale de refroidissement sous la température ambiante
-45
Bruit de lecture
22,1
Courant d'obscurité
0,02
Binning
1 x 1 to 8x 4096
Microlentilles
oui
Mégapixels
16,8
Tirage optique (mm)
25,6
Temps d'exposition max. (min)
95
Diagonale puce (mm)
52

Données générales


Dimensions extérieurs (long. x larg. x haut.) (cm)
17,8 x 17,8 x 6,5
Poids (g)
1900
Série
Alta

Domaine d´emploi


AllSky, Meteore
non
Autoguider
non
Lune & planètes
oui
Nébuleuses & galaxies
oui

Accessoires recommandés

Astronomie (1)
Spectroscope

Spectroscope Paton Hawksley Star Analyser 100

203,00 $*

*Les prix s'entendent TVA comprise, frais d'expédition en plus.

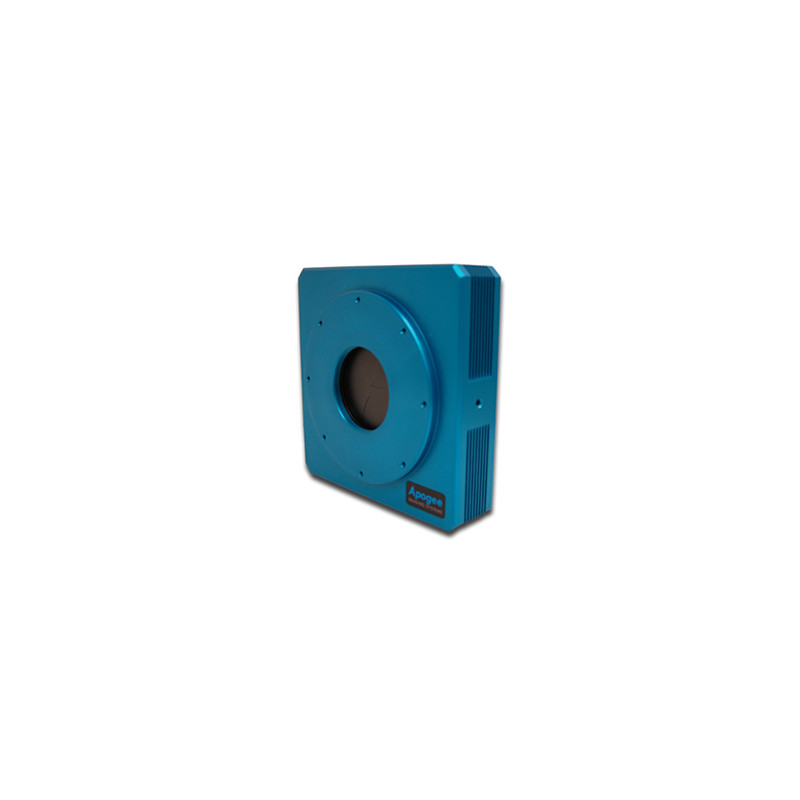

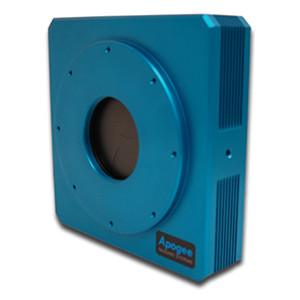

Caméra Apogee Alta F16M grade S

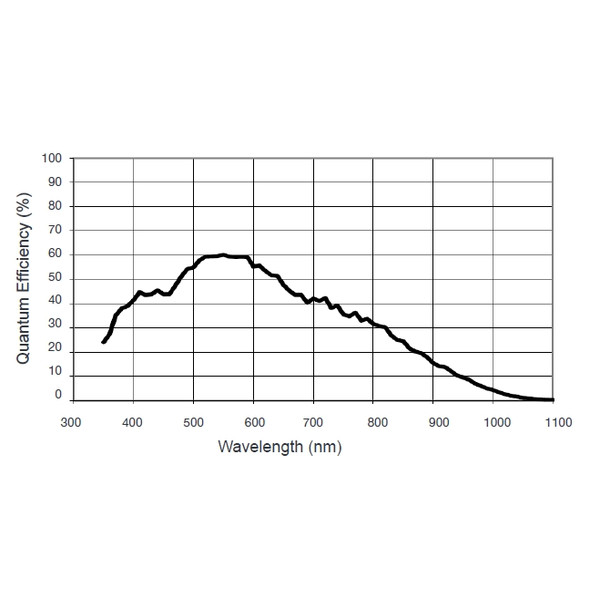

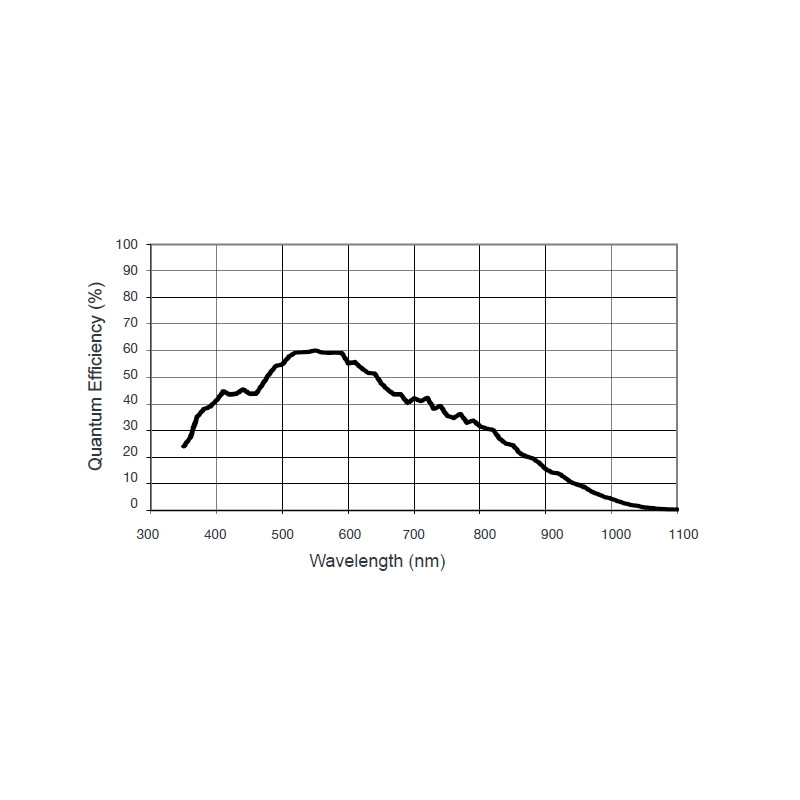

Efficacité quantique
