Astronomie > Filtre > Filtres L-RGB > IDAS > RGB Type 4 > Filtre IDAS Type 4 BGR+L 1,25"
N° d'article : 63995

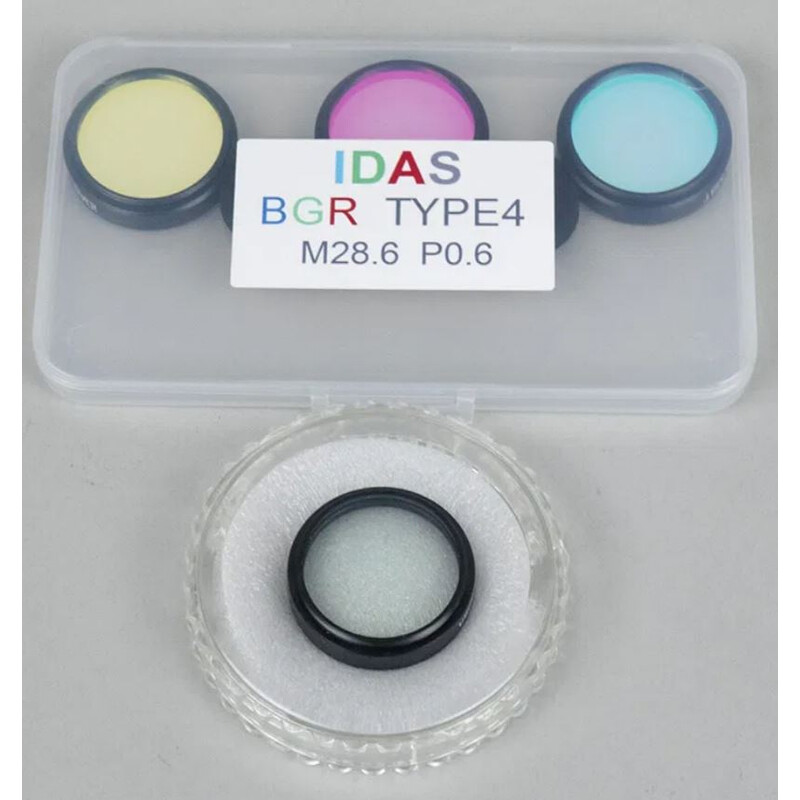

Filtre Type 4 BGR+L 1,25"

670,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à court terme
expédié sous 3-5 semaines + durée de transport

Description du produit

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

IDAS Type 4 BGR+L filter sets are designed for tri-color (BGR) or quad-color (BGR+L) imaging, with special attention to features which address accurate rendition of colors as viewed by the human eye:

  • The bandpasses are designed with astronomical imaging in mind. The passband rolloffs are sufficiently gentle and overlapping to allow intermediate colors (especially the prominent emission nebula lines) to be reproduced so that the elusive goal of "true color" can be approached.
  • The red (R) filter includes some blue (B) band response to match the response of the human eye. This allows violet frequencies to be reproduced correctly as violet (purple). Note that traditional filters which do not include B response in the R filter incorrectly represent violet frequencies as pure blue.
  • The B/G filter cross-over point is set slightly below 500nm to correctly balance the colors in the two OIII emission lines (500.7nm and 495.8nm).


All filters utilize the unique IDAS Ion Gun Assisted Deposition (IGAD*) coating technology for superior coating durability (quartz hardness) and safer cleaning. IGAD coatings also improve temperature and humidity stability of the filter performance, reducing spectrum shifts down to +/-1nm from the +/-3 or 4nm shift of standard coatings.

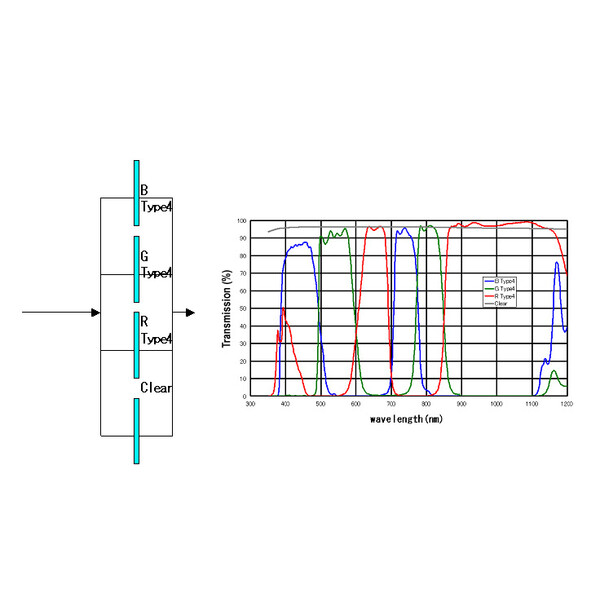

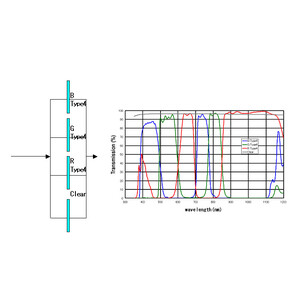

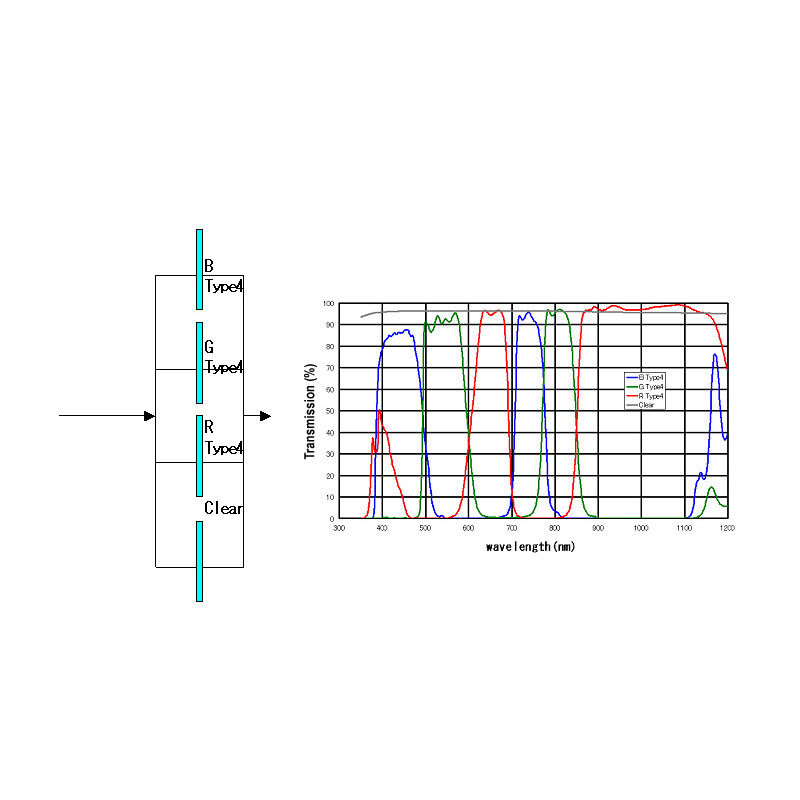

The unique bandpass arrangements of the IDAS Type 4 filters allow several types of imaging to be done with combinations of filters:

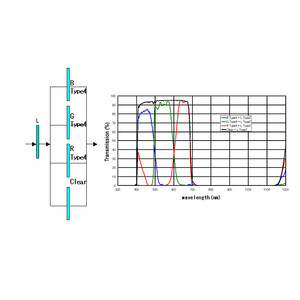

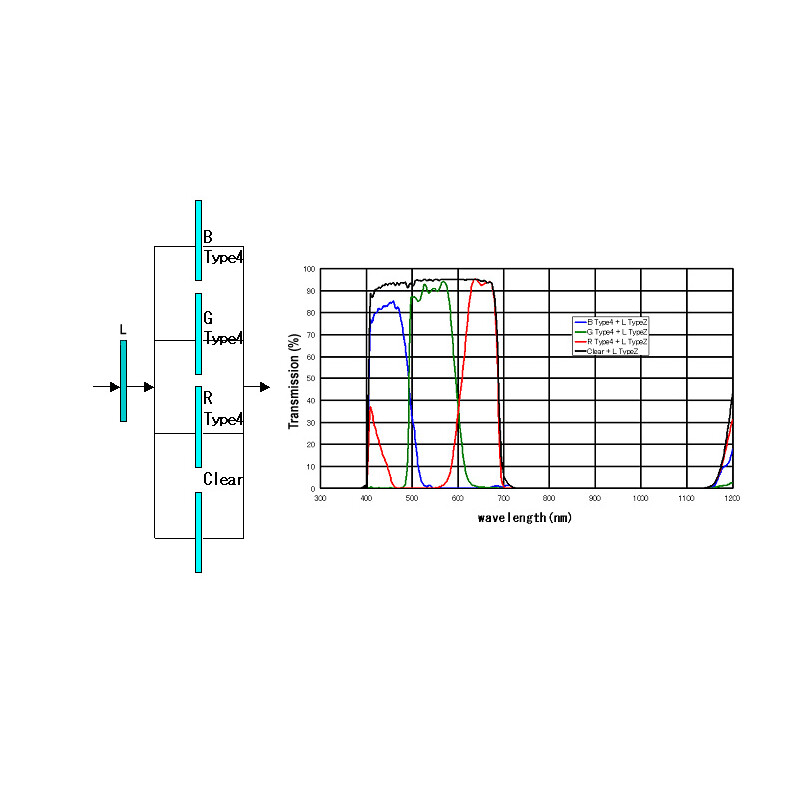

  • Conventional BGR+L imaging is accomplished by using the IR blocking L filter in conjunction with each of the component color filters (BGR). The Clear filter is used for the L-component so that the focus position is the same as for each of the other components.
  • Full-band False Color imaging can be done by using the BGR and clear filters without additional filtering. This allows IR-capable imaging chips to utilize their full spectral capability. Note that the imaging optics must also be capable of properly imaging IR wavelengths.

Spécifications

Capacité


monture
1,25"
Connexion (au téléscope)
1,25"
Matériau de la monture
Aluminium
Traitement de l'optique
multiple

Données générales


Série
RGB Type 4
Type
Filtre
Type de construction
Filtres L-RGB

Domaine d´emploi


Utilisable pour des photos
oui
Utilisable (visuel)
non

Accessoires recommandés

Astronomie (1)

Omegon Roue à filtres 1,25''

189,00 $*

*Les prix s'entendent TVA comprise, frais d'expédition en plus.

Filtre IDAS Type 4 BGR+L 1,25"
Conventional BGR+L
