Vision nocturne & caméras thermiques > Instruments > Caméras à imagerie thermique > Armasight > Command > Caméra à imagerie thermique Armasight Command 336, 5-20x75 (60 Hz)
N° d'article : 54557

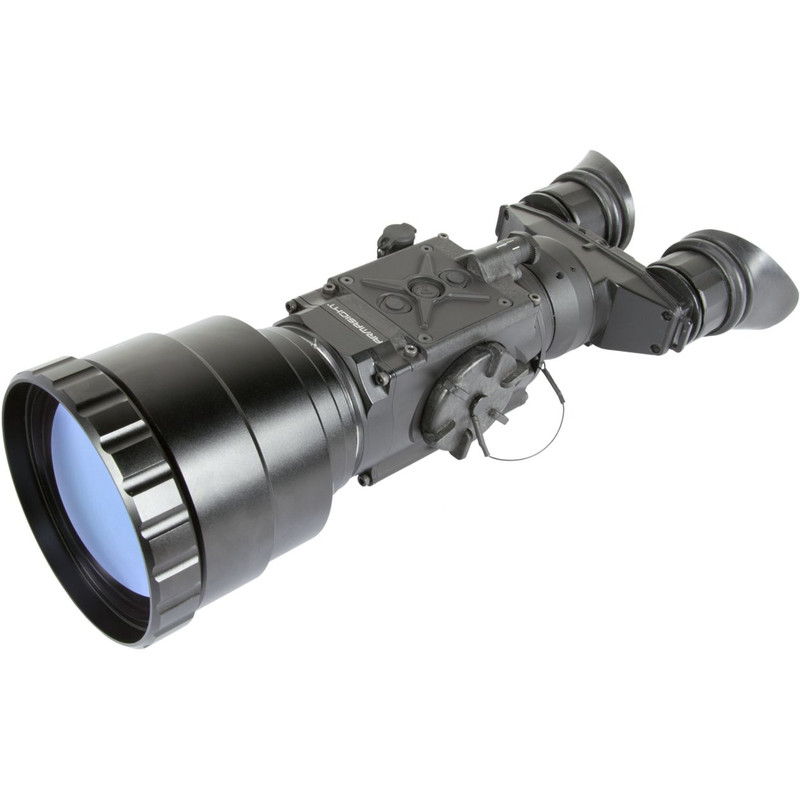

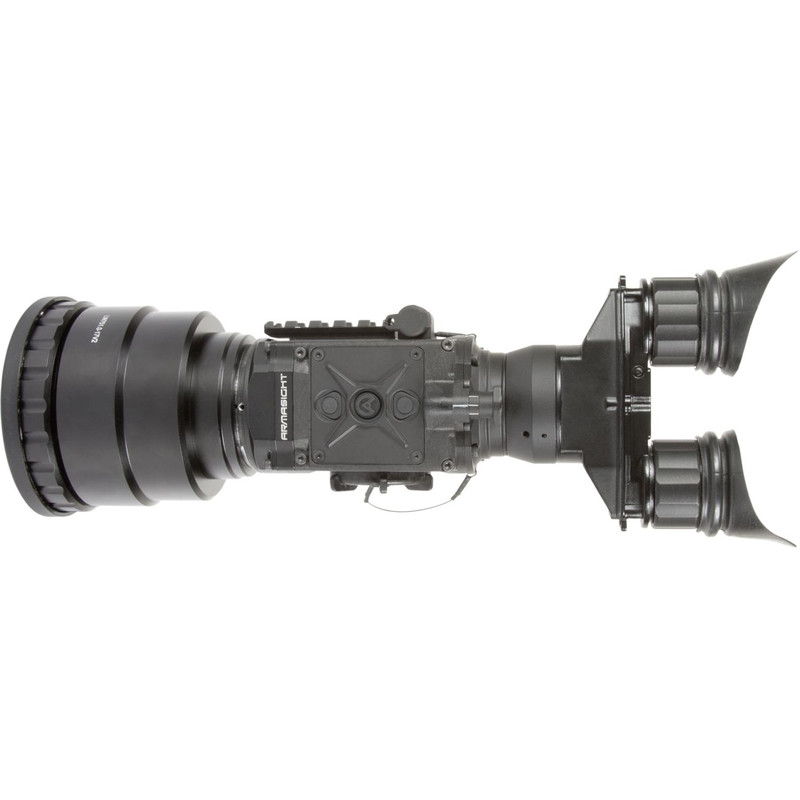

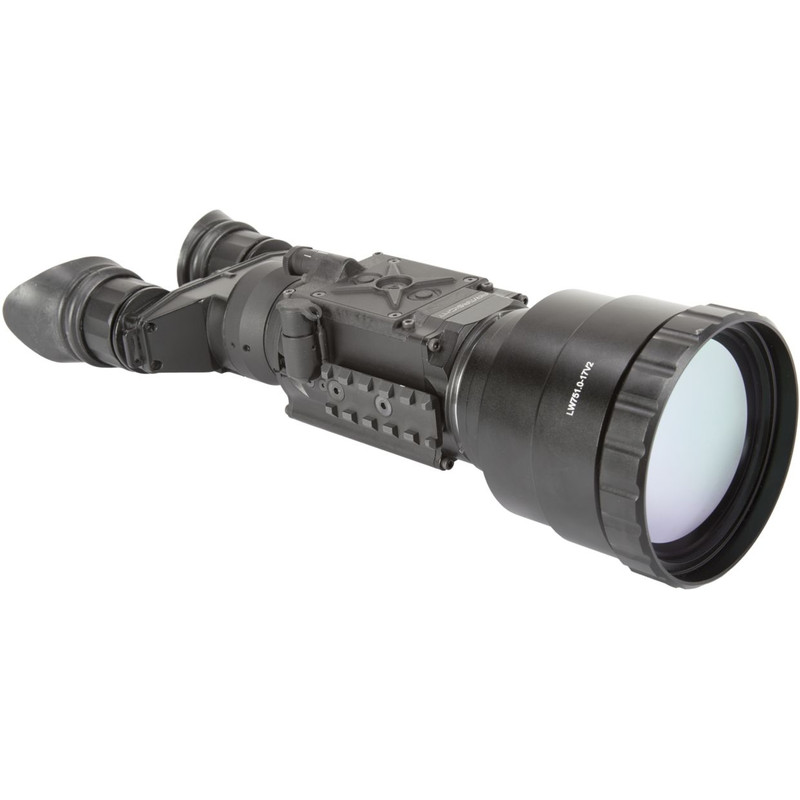

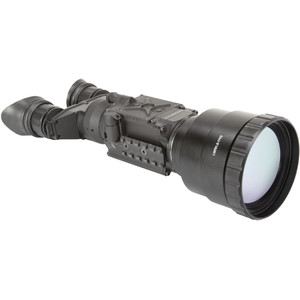

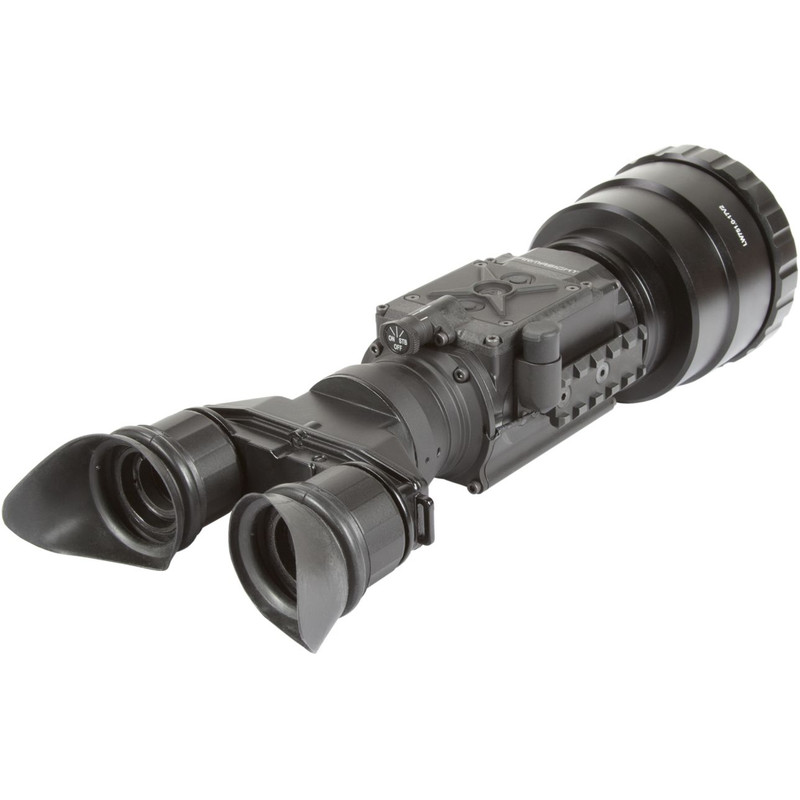

Caméra à imagerie thermique Command 336, 5-20x75 (60 Hz)

5.900,00 $ TVA incluse, plus frais d'expédition
Trop cher ?
à long terme
Cet article n'est plus disponible + durée de transport

Description du produit

Remarque : Les pays d'exportation autorisés pour cet article sont : Allemagne, Argentine, Australie, Autriche, Belgique, Bulgarie, Corée du Sud, Danemark, Espagne, Estonie, Finlande, France, Grèce, Hongrie, Irlande, Islande, Italie, Japon, Lettonie, Lituanie, Luxembourg, Norvège, Nouvelle-Zélande, Pays-Bas, Pologne, Portugal, République tchèque, Roumanie, Slovaquie, Slovénie, Suède, Suisse et Turquie.

Malheureusement, la description de l'article n'a pas encore été traduite en français, c'est pourquoi vous trouverez à la place une description en anglais.

Armasight Command
The Command is the most technologically-advanced Thermal Imaging bi-ocular for the sporting, law enforcement, and military markets. The Command is based on the advanced FLIR VOx microbolometer core that is suitable for a variety of uses and missions.

The Command is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions. The 24/7 mission capability is only one of the strengths of the Command bi-ocular. The thermal imaging technology also allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. Unlike the use of laser targeting or near-infrared illumination to augment night vision equipment, the Command thermal imager is extremely difficult to detect with other devices, as it emits no visible light or RF energy.

Special User-Adjustable Imaging Tools

  • Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
  • Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
  • Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
  • Automatic Gain Control (AGC) – a “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
  • User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Command models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
  • Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Command models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.

FEATURES

  • High-performance thermal imaging camera
  • Lightweight and robust design
  • Easy to operate
  • Manually adjustable eyepiece and objective lens
  • Real-time display
  • Special user-adjustable imaging tools
  • Current operational state information display
  • Wireless remote control
  • Analog video input and output
  • Powered by two standard CR123A batteries
  • Power input capability
  • Digital video recorder (optional)
  • Serviceability under severe conditions
  • Filled with dry nitrogen to prevent internal fogging

Specification Command 336 5-20x75 (60 Hz)

  • Magnification 5,3 (NTSC) / 6,3 (PAL)
  • Objective Lens Type Germanium
  • Objective Focal Length 50mm
  • Objective F-number 1:1
  • Type of Focal Plane Array FLIR Tau 2
  • Refresh Rate 60 Hz
  • Pixel Array Format 336×256
  • Pixel Size 17 µm
  • Display Type AMOLED SVGA 060 800x600
  • Video Recording Optional Digital Video Recorder with SD card slot
  • Operating Temperature -40°C to +50°C (-40°F to +122°F)

Spécifications

Capacité


Type de construction
Binoculaire (une objectif)
Technologie
Caméra à imagerie thermique
Grossissement
5 (+ 4x Digital Zoom)
objectif
75mm F:1
Capteur de résolution (Pixels)
336x256
Représentation d'image
différentes variantes
Fréquence de rafraichissement de l'image (Hz)
60
Correction dioptrique (dpt)
+/- 5
Longévité des batteries (h)
4

Particularités


Eclairage IR
-
Imagerie numérique
oui
Connexion vidéo
oui
Fixation tête
-
Protection de surexposition
oui
Systéme jour et nuit
oui
Etanche aux projections d'eau
oui
Raccord fileté trépied
oui
objectifs additionnels disponibles
non

Champ de vision


Champ de vision réel (°)
4,3
Champ visuel en 100 m (m)
7,5
Limite de mise au point sur les objets rapprochés (m)
5

Domaine d´emploi


Garde d´objet & observation
oui
Chasse & Observation de la nature
oui
Navigation & Pêche
oui
Spéléologie & Camping
oui

Données générales


Couleur
noir
Longueur (mm)
272
Largeur (mm)
102
Hauteur (mm)
89
Poids (g)
1080
Série
Command

Divers


Type de batterie
CR123 (4 unité)

Téléchargements

Accessoires recommandés

Entretien & Nettoyage > Produits de nettoyage (3)

Omegon set de nettoyage optique 7 en 1

19,90 $*
Entretien & Nettoyage > Autre (2)

Omegon Chiffon de nottoyage microfibre 20cm x 20cm

4,90 $*
Divers (1)

Varta Batterie Lithium CR123

8,90 $*

*Les prix s'entendent TVA comprise, frais d'expédition en plus.

Caméra à imagerie thermique Armasight Command 336, 5-20x75 (60 Hz)

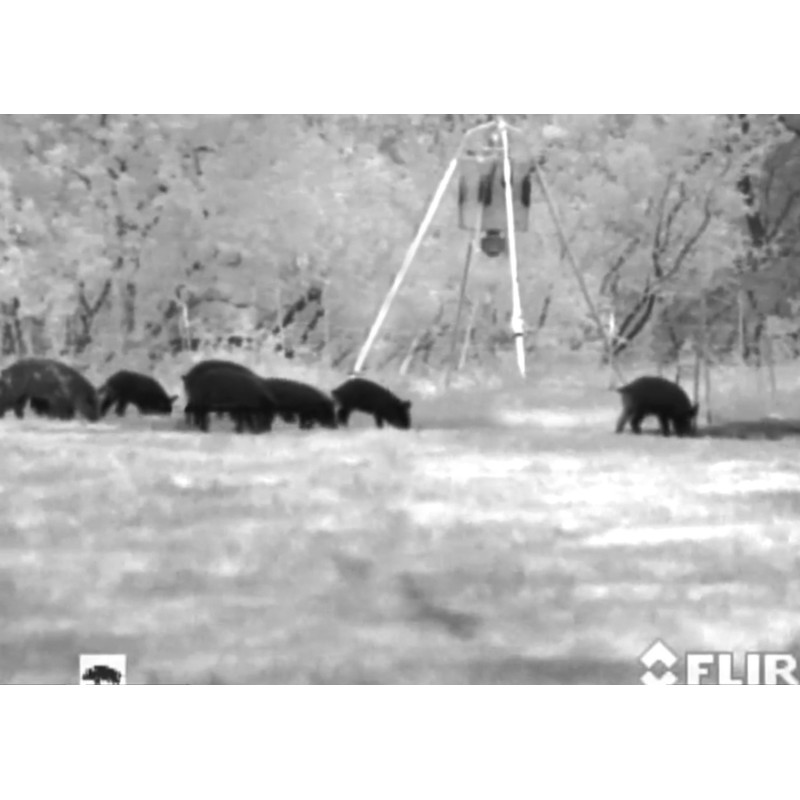

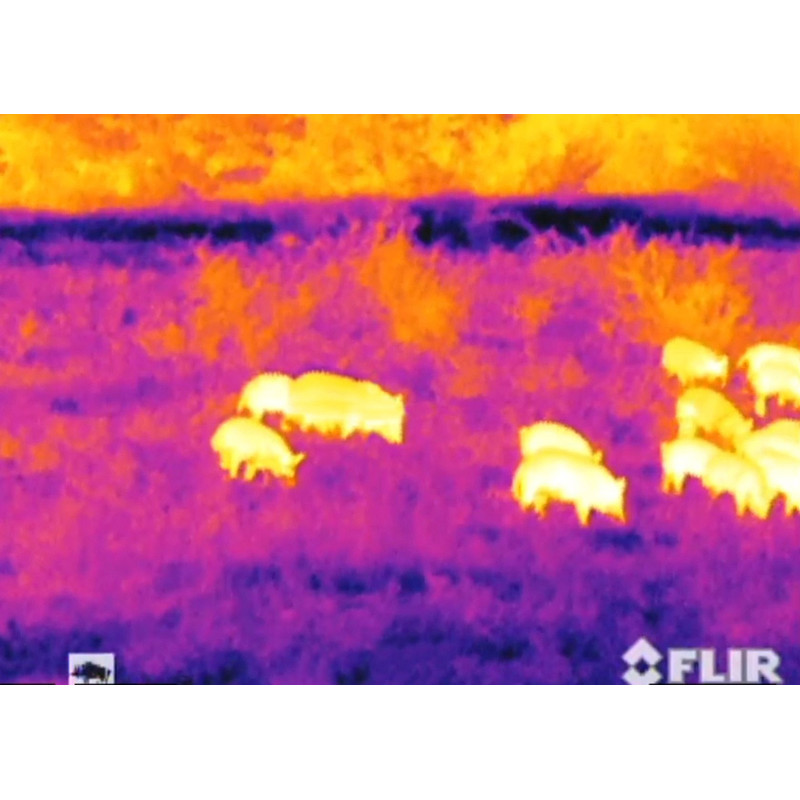

Exemple d'utilisation
Caméra à imagerie thermique Armasight Command 336, 5-20x75 (60 Hz)

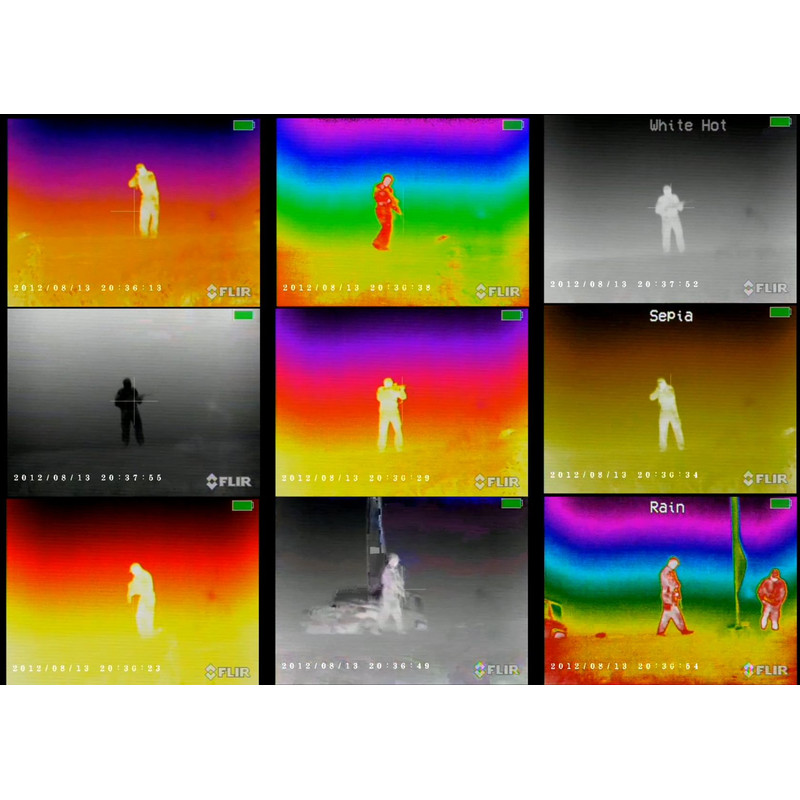

Cette image à titre d’exemple, vous montre les différents choix de représentations des modes de couleur.
